HDRterm50 - Ribbon Cable to Screw Terminal Adapater
HDRterm50 Description
Ribbon cable headers are commonly used with IP [IndustryPack] compatible hardware. HDRterm50 converts from 50 pin ribbon cable to a 50 pin terminal strip. Discrete wires are easily connected with the screw locks on the terminal strip.
The HDRterm50 provides a space efficient, low cost method of interconnecting the control electronics to the rest of the sensors, IO, machinery etc.

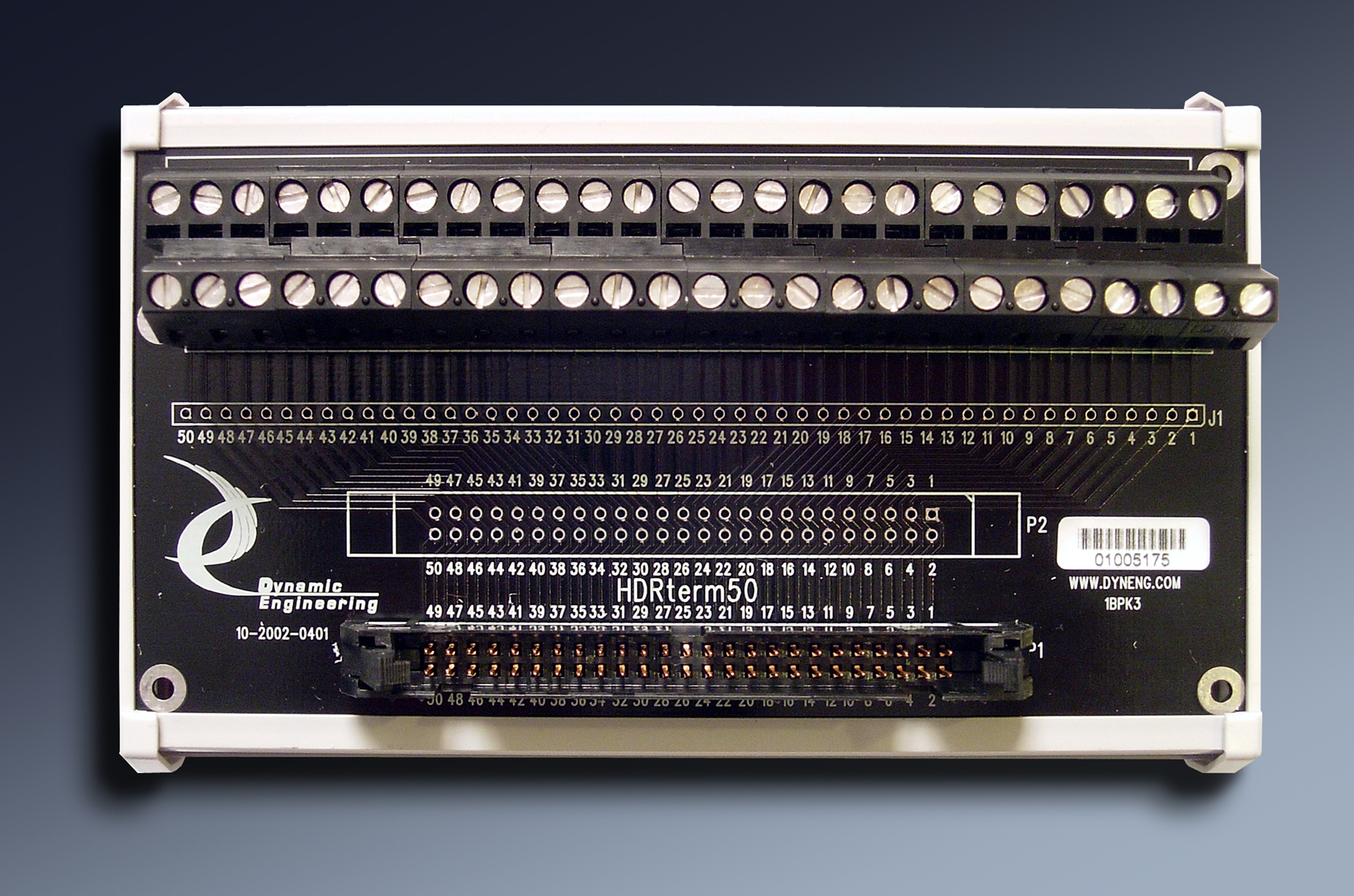

HDRterm50 comes with one 50 pin .10 inch centers 2x25 header connector with ejector/locking handles and one 50 position screw terminal strip. The discrete wires are installed from the side and the lock is accessable from the top for ease of use. The screw terminals can then be used as testpoints. HDRterm50 comes standard with DIN rail mounts for ease of use in VME and other environments. The ribbon cable connector is routed 1:1 to the screw terminal connector.
HDRribn50 is compatible with Dynamic Engineering IP carriers when ordered. Frequently HDRribn50 - 50 position ribbon cable is used with HDRterm50 to create a snap together break out system for your signals.
The HDRterm50 provides a space efficient, low cost method of interconnecting the control electronics to the rest of the sensors, IO, machinery etc.
HDRterm50 comes with one 50 pin .10 inch centers 2x25 header connector with ejector/locking handles and one 50 position screw terminal strip. The discrete wires are installed from the side and the lock is accessable from the top for ease of use. The screw terminals can then be used as testpoints. HDRterm50 comes standard with DIN rail mounts for ease of use in VME and other environments. The ribbon cable connector is routed 1:1 to the screw terminal connector.
HDRribn50 is compatible with Dynamic Engineering IP carriers when ordered. Frequently HDRribn50 - 50 position ribbon cable is used with HDRterm50 to create a snap together break out system for your signals.
HDRterm50 Features
Size
5.475" x 2.878" for std and -ENG models without housing.
Characteristics
1:1 from header pin to Screw Terminals.
Mounting
Available with plastic housing and DIN Rail mounting system or sans plastic with standoff mount.
HDRterm50 Benefits
Ease of Use
Snap together system with HDRribn50 and HDRterm50. Plug into DIN raii system or screw down with standoff mounting. Second box header connector [optional] available to pass through HDRterm50, allow for termination or additonal connections.
Price
HDRterm50 is available at a reasonable price and lead time. See the on-line storefront at the top of this page.
Availability
Dynamic Engineering keeps stock of the standard options. For custom versions: a short lead time for our in house manufacturing staff to make yours.
Compatibility
HDRterm50 can be used with flat ribbon, twisted pair ribbon, and discrete wiring terminated in a header . Many interface possibilities.
Part Number:HDRterm50
Ordering Options
-
HDRterm50: Standard Term50 with DIN rail mounts
-ENG: HDRterm50 without Din rail mounts, plastic and screw terminals.
-P2: Add second box header to assembly
Other related models: HDEterm100 is a "D100" version, HDEterm68 is a 68 position SCSI cable version, DINterm64 is a 64 position ribbon cable version, and UARTcable8 is a specialized breakout for PMC-BiSerial-VI-UART with 8 UART ports on the SCSI converted to 8 discrete DB9 connectors.
Custom Length SCSI Cable
Send us an e-mail - sales@dyneng.com with your requirements. Be sure to include the length, retention [clip / screw], and quantity. Please be aware that custom lengths will take several weeks to process. Pricing is quantity sensitive.
