HDEterm100
HDEterm100 Description
The high density 100 pin SCSI connector is being used for purposes other than SCSI interfaces because of board and front panel space limitations. For example in the PCI/PCIe environments the SCSI connector provides an excellent size and pin count for the front panel space allowed. The SCSI connector while dense, is not easy to connect to with wiring intended to go to multiple locations.

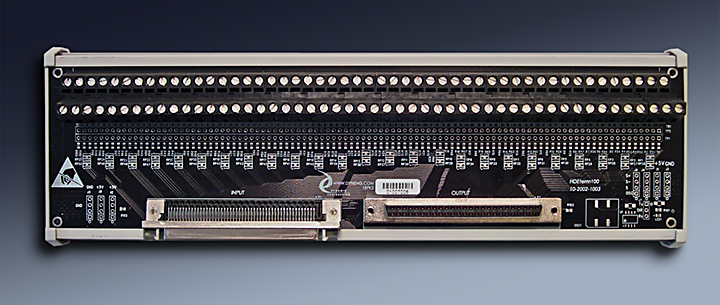

HDEterm100 terminal provides an easy way to get from a high density SCSI connector to discrete wires. For example with the PCIeAlteraCycloneIV, PCIe-Spartan-VI, or PCI-ECL-II designs a standard D100 cable can be used to connect your design to HDEterm100, and to the system wiring via the screw terminals provided. HDEterm100 provides a space efficient, low cost method of interconnecting the control electronics to the rest of the sensors, IO, machinery etc. For your convenience HDEterm100 is available with a DIN rail compatible mounting system.
HDEterm100 comes with two D100 compatible connectors. One connector could be used for a termination plug or for a second SCSI cable. The screw terminals could then be used as testpoints. The SCSI connectors are connected to the screw terminals and to each other 1:1. The PC board is routed with differential pairs between the connectors and terminal strip. Equal length pairs with constant space are used to provide an optimum environment for your differential signaling. A multi-layer PCB allows for a complete ground reference for the signals. 100 ohm differenctial impedance is provided.
If you want custom terminations we can accomodate them. HDEterm100 has several features, which are not installed as part of the standard product, to allow series, parallel, pull-up/pull-down terminations to be added to each line or pair of lines independently. Two rows of 100 header positions each allow interconnect options between the resistors, the SCSI and screw lock connectors. Additional features include: power entry and distribution posts, Oscillator and transceiver positions with jumper selectors for direction and interconnection. Please send us your specifications. We will assign a modified part number and build a custom terminal block for you.
Connectors
2 - D100 compatible with cable locks
SCSI connectors can be vertical, horizontal or mixed. Please specify -V, -H or -M
2 row by 50 terminal strip with side entry wires and top screw lock. Rows are offset for ease of access.
Available with plastic and DIN rails -P or as shown for bench top operation.
HDEterm100 terminal provides an easy way to get from a high density SCSI connector to discrete wires. For example with the PCIeAlteraCycloneIV, PCIe-Spartan-VI, or PCI-ECL-II designs a standard D100 cable can be used to connect your design to HDEterm100, and to the system wiring via the screw terminals provided. HDEterm100 provides a space efficient, low cost method of interconnecting the control electronics to the rest of the sensors, IO, machinery etc. For your convenience HDEterm100 is available with a DIN rail compatible mounting system.
HDEterm100 comes with two D100 compatible connectors. One connector could be used for a termination plug or for a second SCSI cable. The screw terminals could then be used as testpoints. The SCSI connectors are connected to the screw terminals and to each other 1:1. The PC board is routed with differential pairs between the connectors and terminal strip. Equal length pairs with constant space are used to provide an optimum environment for your differential signaling. A multi-layer PCB allows for a complete ground reference for the signals. 100 ohm differenctial impedance is provided.
If you want custom terminations we can accomodate them. HDEterm100 has several features, which are not installed as part of the standard product, to allow series, parallel, pull-up/pull-down terminations to be added to each line or pair of lines independently. Two rows of 100 header positions each allow interconnect options between the resistors, the SCSI and screw lock connectors. Additional features include: power entry and distribution posts, Oscillator and transceiver positions with jumper selectors for direction and interconnection. Please send us your specifications. We will assign a modified part number and build a custom terminal block for you.
Connectors
2 - D100 compatible with cable locks
SCSI connectors can be vertical, horizontal or mixed. Please specify -V, -H or -M
2 row by 50 terminal strip with side entry wires and top screw lock. Rows are offset for ease of access.
Available with plastic and DIN rails -P or as shown for bench top operation.
HDEterm100 Features
Size
10.85 x 2.878 for std and -ENG models without housing.
Characteristics
1:1 from SCSI pin to Screw Terminals. 100 ohm matched length differential pairs from SCSI connector to Screw Terminals to SCSI. Internal ground plane referenced to cable shield.
Mounting
Available with plastic housing and DIN Rail mounting system or sans plastic with standoff mount.
HDEterm100 Benefits
Ease of Use
Snap together system with HDEcabl100 and HDEterm100. Plug into DIN rail system or screw down with standoff mounting. Second connector available to pass through HDEterm100, allow for termination at the connector.
Price
HDEterm100 is available at a reasonable price and lead time. See the on-line storefront at the top of this page.
Availability
Dynamic Engineering keeps stock of the standard options. For custom versions: a short lead time for our in house manufacturing staff to make yours.
D100 Compatibility
HDEterm100 is D100 compatible and useful for many applications.
Part Number:HDEterm100
Ordering Options
-
HDEterm100-HP: (Standard Version) horizontal SCSI connectors with surround
HDEterm100-VP : vertical SCSI connectors with surround
HDEterm100-MP: 1 horizontal and 1 vertical connector with surround
Thumbscrew adapter HDEterm100 is compatible with thumbscrew or latch block style cables. Thumbscrew adapters are needed when using the thumbsrew style cable. 4 threaded standoff´s are provided with the kit.
Remove the "P" if no surround / DIN rails are desired.
HDEterm100-ORB3 Modified build with resistor divider. P2 connected directly to TP2 and Terminal Block. 1.74K ohms in series with each signal and connected to TP1 and P3. TP1/P3 Signals have 267 ohms to ground. See schematic for detail. Other values can be used to create a new PN.
HDEterm100-ENG1 Minimized build with P2 horizontal connector and TP2 locations populated. No surround, stand-offs provided.
Other related models: HDEcabl100 D100 Cable
Custom Length SCSI Cable
Send us an e-mail - sales@dyneng.com with your requirements. Be sure to include the length, retention [clip / screw], and quantity. Please be aware that custom lengths will take several weeks to process. Pricing is quantity sensitive.
HDEterm100 Additional Information
Locations and dimensions of the mounting holes and board, height with and without plastic are included.
A schematic for the HDEterm100 is provided to show the possibilities for terminations, loop-back, signal sources etc.
Reference HDEterm100 Rev 04 Schematic with ORB option shown
Reference HDEterm100 Mechanical revision 03
Reference Statement of Volatility
A schematic for the HDEterm100 is provided to show the possibilities for terminations, loop-back, signal sources etc.
Reference HDEterm100 Rev 04 Schematic with ORB option shown
Reference HDEterm100 Mechanical revision 03
Reference Statement of Volatility
