PCI Compatible Embedded Solutions

Dynamic Engineering's PCI, PCI-X and PCIe Compatible Designs:Peripheral Connect Interface
PCI cards are daughter boards which plug into PC's and other PCI based systems to add functionality.
PCI, PCI-X and PCIe specifications are administered by PCIMG®

Need ROHS compliant hardware? Add -ROHS to our part number(s) for this requirement .

Have our PCI products on hand - download the PCI Catalog in PDF format.

Click on the pictures or links at the summary to go to the Dynamic Data Sheet for that product.
Alternatively, use the Java menu above to navigate directly to your product of interest or to perform a search.

PCI Carriers - Adapt an IP, PMC or PC104p mezzanine to the PCI bus
[PCI = Peripheral Component Interconnect]
PCI2PMC 1/2 length Passive PCI adapter carrier card with PMC mounting slot
PCIBPMC 1/2 length Bridge based PCI adapter carrier card with PMC mounting slot
PCIBPMC-ET 1/2 length Industrial temperature range PMC carrier for PCI bus systems
PCIBPMCX1 1/2 length Bridge based PCI /PCI-X adapter carrier card with PMC mounting slot. Differential routed Pn4 IO
PCIBPMCX2 Full length Bridge based PCI / PCI-X card with 2 PMC mounting positions,
PCI2PC104p PCI to PC/104+ adapter card with test and production card orientation options
PCIbPC104p PCI to PC/104+ adapter card with test and production card orientation options
PCI3IP PCI carrier with 3 IP [IndustryPack] slots Drivers Available
PCI5IP PCI carrier with 5 IP [IndustryPack] slots Drivers Available
PCI2cPCI-32 bit Mount a cPCI card into a PCI slot
PCI2cPCI-64 bit Mount a cPCI card into a PCI slot
PMC2PCI Mount a PCI card in a PMC slot


PCI General Purpose ECL, TTL, Open Collector, and Differential IO
Add any Dynamic Engineering PMC, IP or PC104p card to a carrier for more solutions on the PCI bus

PCI Bus Interface
PCI-ASCB PCI card with Dual Redundant IO and PMC Position
PCI_LVDS_8R PCI card with 8 channels of LVDS input
PCI_LVDS_8T PCI card with 8 channels of LVDS output
PCI_LVDS_2R PCI card with 2 channels of LVDS input
PCI_LVDS_2T PCI card with 2 channels of LVDS output
PCI-Spacewire PCI card with PMC Compatible SpaceWire Interface and optional 128K FIFO¹s

PCI User Design - Your VHDL goes here Drivers Available
PCI-Altera-485 PCI card with 20K400 or other footprint compatible device, plus 40 RS485 channels, and 12 TTL IO
PCI-Altera-LVDS PCI card with 20K400 or other footprint compatible device, plus 40 LVDS channels, and 12 TTL IO
PCI-Altera-PLUS PCI card 20K600, double density intermediate FIFO´s, larger Block RAM in the Xilinx
PCI_ECL High speed DMA supported ECL IO user design supported

PCI Simulator - use our designs to test in your system
PCI-Harpoon PCI card with 28V optically coupled inputs, High Side and Low Side switches, 115V detection, and differential IO Drivers Available

PCI Misc., Cables, BreakOuts, etc.
DESWCB Custom Cable to Spacewire Adapter
HDEterm68 SCSI II/III adapter to terminal strip breakout
HDEcabl68 68 pin SCSI III cable
HDEcablcustom Custom Cables
DINterm64 64 position ribbon cable to terminal block breakout
DINribn64 64 position ribbon cable with strain relief
HDEterm100 Terminal breakout block with D100 connectors and screw terminals
HDEcabl100 D100 connectors, and 50 twisted pairs for PCI-Altera, PCI-ECL
LVDS Cable 100 pin LVDS cable for PCI-LVDS-8R, PCI-LVDS-8T 50 twisted pairs with 3M connectors

PCI Test
DESWBO SpaceWire BreakOut design w/power adapter. Test points and LEDs to monitor SpaceWire activity. Pass through design.


Click here to visit our Storefront to place orders online Dynamic Engineering Storefront

PCI Carriers - Adapt an IP, PMC or PC104p mezzanine to the PCI bus

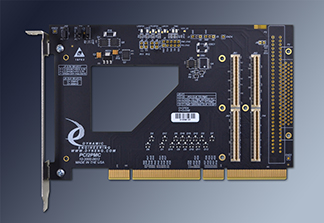

PCI2PMC
1/2 length PCI adapter carrier card with PMC mounting slot. Front panel and Pn4 IO access. 32 / 64 bit operation.

Quantity

PCIBPMC
1/2 length Bridge Based PCI adapter carrier card with PMC mounting slot. Front panel and Pn4 IO access. 32 / 64 bit operation.

Ordering Options: Please select the board version and engineering kit you wish to order.
Select Board Version PCIBPMC (Standard Version): PCIBPMC-SCSI: PCIBPMC-FAN Position1: PCIBPMC-FAN Position2: PCIBPMC-ENET: PCIBPMC-SER: PCIBPMC-.5: PCIBPMC_RJ45&Ser: PCIBPMC-VIO3 PCIBPMC-SCSI-VIO3 PCIBPMC-FAN-VIO3 Position1: PCIBPMC-FAN-VIO3 Position2: PCIBPMC-ENET-VIO3 PCIBPMC-SER-VIO3 PCIBPMC_RJ45&Ser-VIO3 PCIBPMC-CUSTOMER'IZED Select Breakout Kit Option No Breakout kit Add Breakout kit: Add 64 based Breakout Kit:
Quantity

PCIBPMC-ET
1/2 length Industrial Temperature Bridge Based PCI adapter carrier card with PMC mounting slot. Front panel and Pn4 IO access. 32 / 64 bit operation.

Using the drop down menus, select your board build options and Accessory options.
Processing: Standard ROHS Processing Select Board Version PCIBPMC-ET : PCIBPMC-ET-SCSI: PCIBPMC-ET-NC Please Select Fan options:n No fan PCIBPMC-ET-FAN1 low profile fan Pos1 PCIBPMC-ET-FAN2 low profile fan Pos2 PCIBPMC-ET-FAN12 fan in Both Pos PCIBPMC-ET-FAN1R rear fan Pos1 PCIBPMC-ET-FAN2R rear fan Pos2 Do you require Ethernet Connections: No: Yes:-ENET: Do you require Serial Connections: No: Yes:-SER: Do you require forced VIO3? no: yes -VIO3 Select Breakout Kit Option if needed: No Breakout kit Add Breakout kit Add Breakout kit Related Accessories: Related access. HDEterm68-MP HDEterm68-HP HDEterm68-VP HDEterm68-M Breakout W/out Plastic HDEterm68-V Breakout W/out Plastic HDEterm68-H Breakout W/out Plastic HDEterm68-Eng(eng. unit no plastic, no terminal block) Cable options: cable HDEcabl68-1-(3'LB) HDEcabl68-3-(1.5'LB) HDEcabl68-24-(2'LB) HDEcabl68-2-(6'LB) HDEcabl68-15-(10'LB) HDEcabl68-11-(3'TS) HDEcabl68-12-(6'TS) HDEcabl68-10-(10'TS M/F HDEcabl68-13-(3'M/F TS) HDEcabl68-2M/F-(2'TSb M/F) HDEcabl68-custom (let us know your spec.) Ribncabl64-1 1ft cable Ribncabl64-3 3ft cable Ribncabl64-6 6ft cable Other Accessories Add Thumbscrew extenders
Quantity

PCIBPMCX1
1/2 length Bridge Based PCI adapter carrier card with PMC mounting slot. Front panel and Pn4 IO access. PCI and or PCI-X operation. Differential matched length Pn4 IO routing

Ordering Options: Please select the board version and engineering kit you wish to order.
Select Board Version PCIBPMCx1 (Standard Version): PCIBPMCx1-ROHS PCIBPMCx1-NC No SCSI: PCIBPMCx1-VIO3 3.3V only PCIBPMCx1-ROHS-VIO3 3.3V only PCIBPMCx1-NC-VIO3 No SCSI 3.3V PCIBPMCx1-CUSTOMER'IZED Fan options: No fan PCIBPMCx1-FAN1 fan in Pos1 PCIBPMCx1-FAN2 fan in Pos2 Related Accessories: No accessories HDEterm68-MP HDEterm68-HP HDEterm68-VP HDEterm68-M Breakout W/out Plastic HDEterm68-V Breakout W/out Plastic HDEterm68-H Breakout W/out Plastic HDEterm68-Eng(eng. unit no plastic, no terminal block) DinTerm64P DinTerm64-np: with no plastic DinTerm64-eng Cable options: no cable HDEcabl68-1-(3'LB) HDEcabl68-3-(1.5'LB) HDEcabl68-24-(2'LB) HDEcabl68-2-(6'LB) HDEcabl68-15-(10'LB) HDEcabl68-11-(3'TS) HDEcabl68-12-(6'TS) HDEcabl68-10-(10'TS M/F HDEcabl68-13-(3'M/F TS) HDEcabl68-2M/F-(2'TSb M/F) HDEcabl68-custom (let us know your spec.) Ribncabl64-1 1ft cable Ribncabl64-3 3ft cable Ribncabl64-6 6ft cable Other Accessories Add Thumbscrew extenders
Quantity

PCIBPMCX2
Bridge Based PCI adapter carrier card with two PMC mounting slots. Front panel and Pn4 IO access. PCI and PCI-X compatible Non Transparent Bridge

Ordering Options: Please select the board version and engineering kit you wish to order.
Select Board Version PCIBPMCx2 (Standard Version): PCIBPMCx2-VIO3 3.3V only PCIBPMCx2-FAN pre-installed 12V 8CFM fan 1ea PCIBPMCx2-FAN(2) 2 pre-installed 12V 8CFM fan 2ea PCIBPMCx2-SCSI: PCIBPMCx2-NC No VME, No SCSI: PCIBPMCx2-ENET: PCIBPMCx2-SER: PCIBPMC_RJ45&Ser: PCIBPMCx2-CUSTOMER'IZED
Quantity

PCI2PC104p
Use your PC104p or PCI-104 boards in a standard PC. Two orientations supported for production mode and test.

Please select version from below:
PCI2PC104p PCI2PC104p-test: Test Version:
Quantity

PCIBPC104p
Use your PC104p or PCI-104 boards in a standard PC. Two orientations supported for production mode and test.

Please select version from below:
PCIBPC104p PCIBPC104p-test: Test Version:
Quantity

PCI3IP
1/2 size PCI card with 3 IndustryPack® compatible slots. Separate clock controls, filtered fused power, reset switch, LEDs.

Quantity

PCI5IP
PCI card with 5 Industrypack compatible slots. Separate clock controls, filtered fused power, reset switch, LEDs, user dip-switch.

Quantity

PCI2cPCI-32
Install a cPCI board into a PCI slot. This adapter supports 32-bit

Quantity

PCI2cPCI-64
Install a cPCI board into a PCI slot. This adapter supports 64-bit PCI

Quantity

PMC2PCI

The PMC2PCI Adapter/carrier card mounts in a PMC slot and provides a PCI slot. 3.3V and 5V slots to choose from. Riser also available for right angle orientation.

Quantity

PCI Bus Interface


PCI_ASCB
PCI card with Dual Redundant IO and PMC Position


PCI_LVDS_8R
PCI card with 8 channels of LVDS input, digital filtering and storage. "Scatter gather" DMA data transfer.
Available as a 2 channel card PCI_LVDS_2R



PCI_LVDS_8T
PCI card with 8 channels of LVDS output, digital filtering and storage. "Scatter gather" DMA data transfer.
Available as a 2 channel card PCI_LVDS_2T

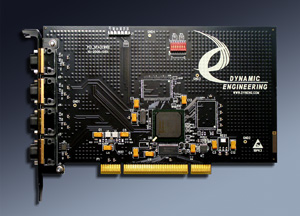

PCI_Spacewire
Utilize SpaceWire to communicate with the European Space Agency and NASA equipment utilizing the ECSS-E-50-12A specification. SpaceWire is configured using routers to create a heirarchical point-to-point system with high speed parallel paths. Available with optional 128K FIFO¹s

Please select engineering kit/Driver options below:

Quantity

PCI User Design - Your VHDL goes here



PCI_Altera_485
PCI_Altera_LVDS
PCI card with 20K400 or other footprint compatible device, plus 40 RS485 channels, and 12 TTL IO. Altera loaded via PCI bus, JTAG or PROM. 16 - 4K x 8 FIFOs between Altera and Xilinx FPGAs to allow for rate matching. DMA on PCI bus with PLX 9054.

Quantity

PCI_Altera_PLUS-485
PCI_Altera_PLUS-LVDS
PCI card with 20K600 or other footprint compatible device, plus 40 RS485 channels, and 12 TTL IO, double density intermediate FIFO´s and larger Block RAM in the Xilinx.

Quantity

PCI_ECL
High speed DMA supported ECL IO. 20 Input, 20 output, 12 TTL, User design VHDL

Quantity

PCI Simulator


PCI-Harpoon
PCI-Harpoon has 4 channels each with 5 optocoupled inputs configured for 28V, 7 High Side switches with optocoupled FETs [60V, 1.5A max], 4 Low Side optocoupled FET Switches [1.5A] , 5 - 115V detectors, and 6 differential transceivers with matched length routing, programmable terminations and directions [40 MHz max]

Please select engineering kit/Driver options below:

PCI-Harpoon Engineering Kit Options Add:Hardware Engineering kit Add:PCI-HARPOON-ENG-DEV + Driver Add:Software Support Only (Windows®XP/2000 compliant drivers )
Quantity

PCI Misc., Cables, BreakOuts, etc.


DESWCB
DESWCB is custom cable to spacewire break out board

Quantity

HDEterm68
SCSI II/III to 68 Terminal positions SCSI II/III adapter to terminal strip with DIN rail and custom termination options

Quantity

HDEcabl68
SCSI II/III cable - 68 pin high density SCSI connectors with latch blocks or 2-56 thumbscrew hardware in 3 ft. and 6 ft. lengths. Twisted pair construction. Use with PMC-parallel-IO and other PMC hardware.

Quantity

HDEcablcustom
Need a custom cable/connector? Send us your diagram for a custom solution.

Quantity

Dinterm64
DINterm64 provides a space efficient, low cost method of interconnecting the control electronics to the rest of the sensors, IO, machinery etc. 64 bit ribbon to 64 screw terminal adapter.

DinTerm64 standard (Plastic housing) DINterm64NP- WithOut/plastic DINterm64Eng


Quantity

Dinribn64
DINribn64 is compatible with DINterm64 and provides a connection method between DIN style header connectors and other equipment. 64 positions, rows A and C filled in header.



HDEterm100
D100 to 100 Terminal positions

Quantity

HDEcabl100
D100 cable with 50 twisted pairs



LVDS-Cable
100 position, .050 MDR/MDR for high speed digital data transmission systems.

Quantity


PCI Test


DESWBO
DESWBO: SpaceWire BreakOut design complete with power adapter
Quantity

Frequently Asked Questions for PCI products


Tell us about your special requirements


Custom, IP, PMC, PC*MIP, PCI, VME Hardware, Software designed to your requirements
